​NSH803PQ 8A, 300V Half-Bridge IPM

一、Description

NSH803PQ is a 8A,300V half-bridge intelligencepower module designed for motor drive applications,integrated 8A/300V MOSFET gate driver andbootstrap functionality in a small PQFN 5×6mmpackage. It can be flexibly applied to single-phase andthree-phase DC brushless motor drive.

二、Features

 Under-voltage lockout for both channels
 High-level effective, supported 3.3V, 5V and 15V input
 Integrated gate drivers and bootstrap functionality
 Temperature detected output for MCU control
 Cross-conduction prevention logic
 Isolation 1500 VRMS min
 300V maximum operating voltage
 8A Peak pulse current @25℃
 Maximum Power Dissipation 14W
 High-Side Under-Voltage Protection

三、Applications

 BLDC Motor control

 BDC Motor control

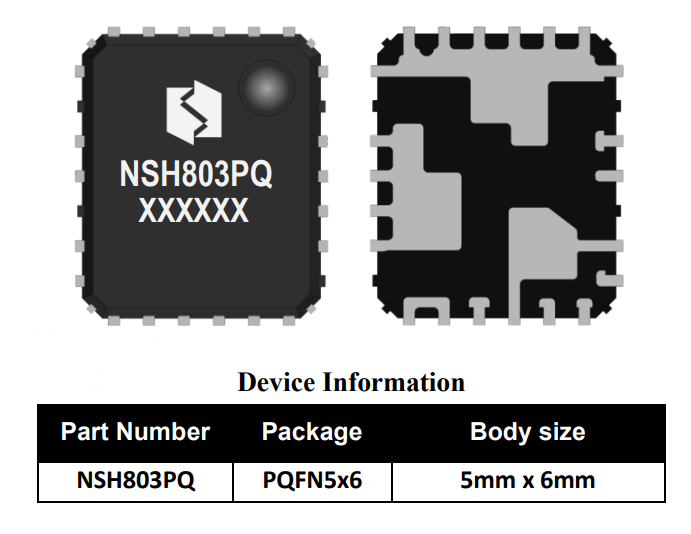

四、Device Information

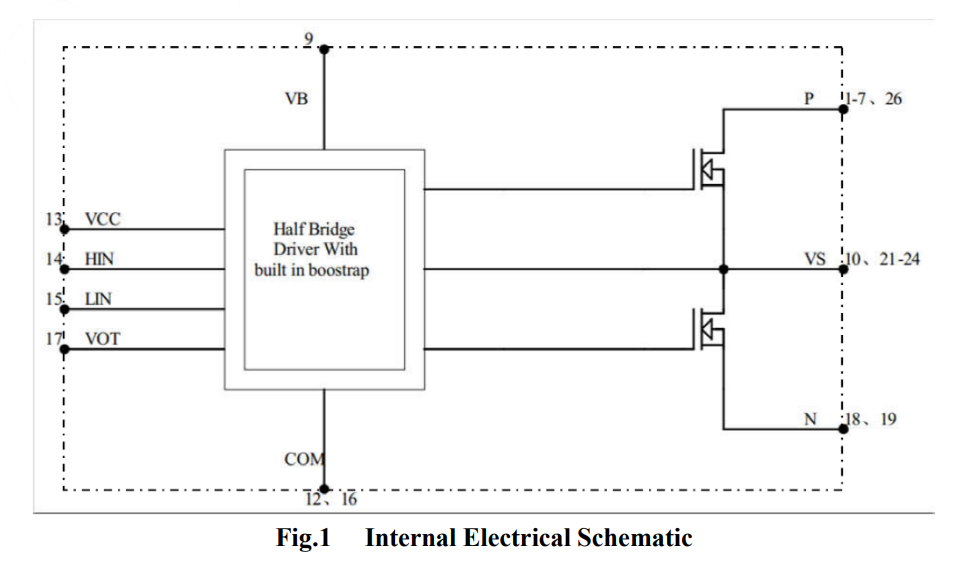

五、Internal Electrical Schematic

​
