​NSH505PQ 5A, 500V Half-Bridge IPM

一、Description

NSH505PQ is a 5A,500V half-brigde intelligence power module designed for motor drive applications, integrated 5A/500V MOSFET gate driver and bootstrap functionality in a small PQFN 5×6mm package. It can be flexibly applied to single-phase and three-phase DC brushless motor drive.

二、.Features

Under-voltage lockout for both channels
High-level effective, supported 3.3V, 5V and 15V input
Integrated gate drivers and bootstrap functionality
Temperature detected output for MCU control
Cross-conduction prevention logic
Isolation 1500 VRMS min
500V maximum operating voltage
5A Peak pulse current @25℃
Maximum Power Dissipation for each MOSFET
--14.2W
High-Side Under-Voltage Protection
--Trigger level=8.2V
--Reset level= 8.9V

三、Applications

BLDC Motor control

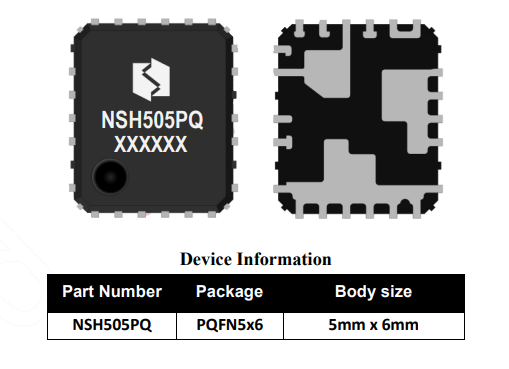

四、Device Information

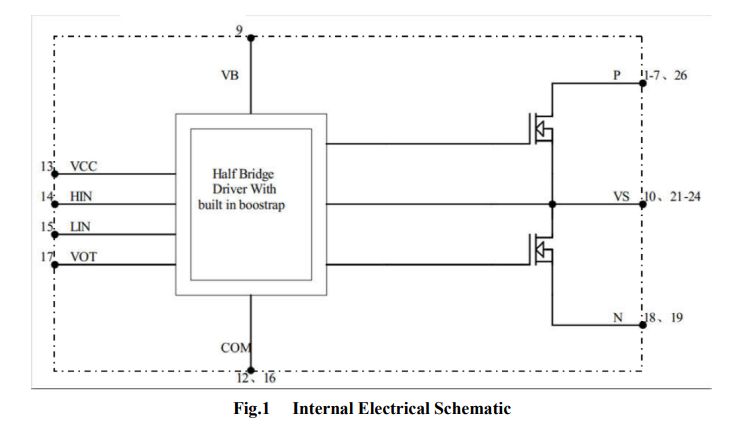

五、Internal Electrical Schematic
